Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160
Optima TX, 0.010" Din 160

$418.95

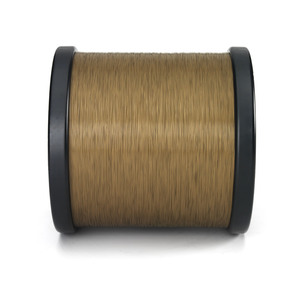

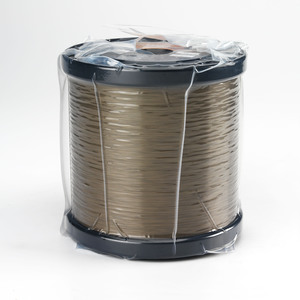

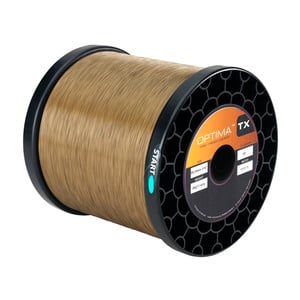

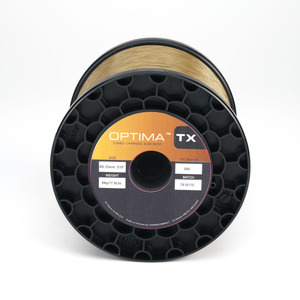

X-Type Optima TX 0.010 470 N/mm2 Din 160 features a pure copper core with an enhanced beta gamma brass coating. It has a tensile strength of 450 N/mm2 and is ideal for high speeds and thick materials found in aerospace machining, for example.

Available

Add to Favorites
Optima TX, 0.010" Din 160
ID: TX10175
Optima TX, 0.010" Din 160

$418.95

Available

Add to Favorites
B2B EDM Wire
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Elongation 1.4
Conductibility 65.0
Wire Core Copper
Wire Coating Beta Brass
Tensile Strength (N/mm2) 500.0
Target Materials Steel, Aluminum, Copper, Tungsten Carbide, Nickel, Titanium, PCD
Flushing Conditions Average to poor
Work-piece size/shape Tall (>4”)
Application Priority (speed vs precision) High Speed
Recommended Usage Aerospace
Tool & Die
General Machining
Spool Type K160
Spool Weight (lb) 17.5
Spool Weight (kg) 8
Approximate Length/spool (yd) 20,997
Approximate Length/spool (m) 19,200
Packaging Quantity 2/box
Machine Manufacturer Charmilles
