$160.30

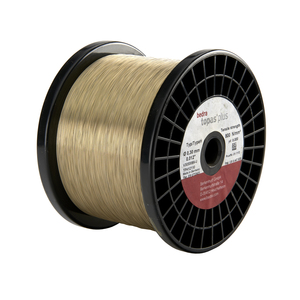

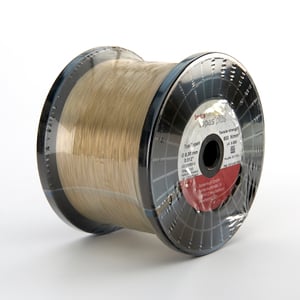

.012"DIA BEDRA TOPAS PLUS H, 11LBS is part of bedra's world-renowned EDM Wire portfolio. Well known for their high quality, bedra EDM wires are manufactured in Germany by Berkenhoff GmbH, a global leader with over 100 years of pioneering developments in non-ferrous fine wire manufacturing.

For availability contact us via Chat, (800)290-7573, or at
[email protected]

bedra topas® plus H wires are part of bedra's world-renowned EDM Wire portfolio. Well known for their high quality, all bedra EDM wires are manufactured in Germany by Berkenhoff GmbH, a global leader with over 100 years of pioneering developments in non-ferrous fine wire manufacturing. Berkenhoff started drawing EDM wires as far back as 1969 and began producing brass wires in 1976.


Berkenhoff is certified to ISO 9002 and its 400+ employees include specialists in chemistry, physics, material sciences, material testing, analysis, quality control, and factory automation. Berkenhoff is globally one of the very few fully vertically integrated wire producers where the complete EDM wire manufacturing process from casting to drawing to spooling and packaging is done under one roof, assuring total control of all critical EDM wire parameters. bedra EDM wire sets the global standard for quality and consistency which translates to precise, efficient, and uninterrupted WEDM machine operation.


bedra topas® plus H  wire is manufactured to a tensile strength of 800 N/mm2, features a CuZn36 brass core and a gamma brass coating. It comes in multiple diameters on a variety of spool sizes.

bedra topas® plus H is a universal wire for speed, accuracy and good surface finishes. It is excellent for automatic wire threading and due to its special coating has up to 20% higher cutting speed compared to brass wire.

EDM Wire
Wire Diameter (in) .012
Wire Diameter (mm) 0.3
Elongation >1%
Conductibility 22.4
Wire Core Brass 64/36
Wire Coating Gamma brass
Tensile Strength (N/mm2) 800.0
Target Materials Steel, Aluminum, Aerospace alloys (Hastaloy, Inconel), PCD
Flushing Conditions Average
Work-piece size/shape Thin (<2”)
Application Priority (speed vs precision) High Speed
Recommended Usage General Machining
Spool Type P5
Spool Weight (lb) 11
Spool Weight (kg) 5
Approximate Length/spool (yd) 8,858
Approximate Length/spool (m) 8,100
Packaging Quantity 4/box
Machine Manufacturer Agie
Mitsubishi
Sodick
Fanuc
Mitsubishi
