$229.95

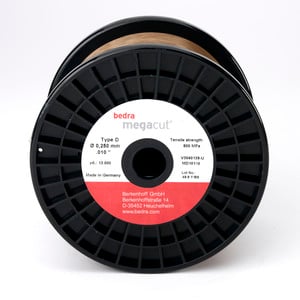

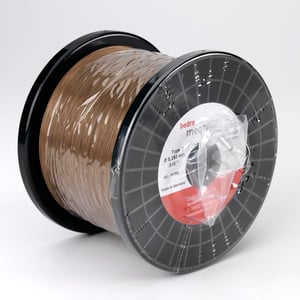

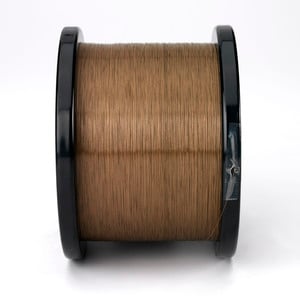

.010"DIA BEDRA MEGACUT D WIRE, 11LBS is part of bedra's world-renowned EDM Wire portfolio. Well known for their high quality, bedra EDM wires are manufactured in Germany by Berkenhoff GmbH, a global leader with over 100 years of pioneering developments in non-ferrous fine wire manufacturing.

Available

bedra megacut® Type D wires are part of bedra's world-renowned EDM Wire portfolio. Well known for their high quality, all bedra EDM wires are manufactured in Germany by Berkenhoff GmbH, a global leader with over 100 years of pioneering developments in non-ferrous fine wire manufacturing. Berkenhoff started drawing EDM wires as far back as 1969 and began producing brass wires in 1976.


Berkenhoff is certified to ISO 9002 and its 400+ employees include specialists in chemistry, physics, material sciences, material testing, analysis, quality control, and factory automation. Berkenhoff is globally one of the very few fully vertically integrated wire producers where the complete EDM wire manufacturing process from casting to drawing to spooling and packaging is done under one roof, assuring total control of all critical EDM wire parameters. bedra EDM wire sets the global standard for quality and consistency which translates to precise, efficient, and uninterrupted WEDM machine operation.


bedra megacut® Type D wire is manufactured to a tensile strength of 800 N/mm2, features a high copper brass CuZn20 core and a CuZn50 brass coating. It comes in multiple diameters on a variety of spool sizes. This wire was originally developed for high-power generators on Agie AC 100D machines but to this day can be used in a variety of high speed applications.

EDM Wire
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Elongation 1
Conductibility 29.3
Wire Core Brass 80/21
Wire Coating CuZn51
Tensile Strength (N/mm2) 800.0
Target Materials Steel, Copper, Tungsten carbide, Aluminum, Nickel, Titanium
Flushing Conditions Average to Poor
Work-piece size/shape Tall (>4”)
Application Priority (speed vs precision) High Speed
Recommended Usage Aerospace
Molds
General Machining
Medical
Spool Type P5
Spool Weight (lb) 11
Spool Weight (kg) 5
Approximate Length/spool (yd) 12,795
Approximate Length/spool (m) 11,700
Packaging Quantity 4/box
Machine Manufacturer GFMS AgieCharmilles
Fanuc
Makino
Mitsubishi
Sodick
