$353.25

.010"DIA VERSACUT PREMIUM BRASS, 35LBS is made exclusively under private label in Japan for Single Source Technologies. Only virgin raw materials are used in making the high zinc CuZn40 (60% copper, 40% zinc) brass alloy.

Available

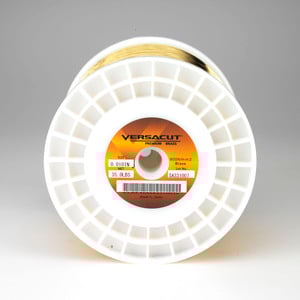

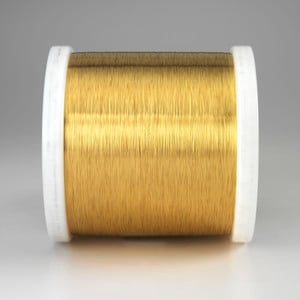

VersaCut Premium Brass EDM Wire is made exclusively under private label in Japan for SST Consumables by one of the premier and most respected EDM brass wire manufacturers worldwide. Only virgin raw materials are used in making the high zinc CuZn40 (60% copper, 40% zinc) brass alloy from which this wire is drawn. The high zinc content allows for the wire to run slightly faster than brass wires made of alloys with a lower zinc content. VersaCut Premium Brass wire is paraffin free and made using patented technologies and processes to meet or exceed the quality standards of some popular brand name wires. It is available in standard diameter from .008" to .012" in a hard version with a nominal tensile strength of at least 900 N/mm2. VersaCut Premium Brass EDM wire runs very well on Makino, Fanuc and older Agie machines.

EDM Wire
Wire Diameter (in) .010
Wire Diameter (mm) 0.25
Elongation 1
Wire Core Brass 60/40
Wire Coating n/a
Tensile Strength (N/mm2) 980.0
Target Materials Steel
Flushing Conditions Average
Application Priority (speed vs precision) Precision & Finish
Recommended Usage General Machining
Spool Type K200
Spool Weight (lb) 35.2
Spool Weight (kg) 16
Approximate Length/spool (yd) 41,995
Approximate Length/spool (m) 38,400
Packaging Quantity 1/box
Machine Manufacturer Makino
Fanuc
Seibu
Sodick
Agie
Mitsubishi
