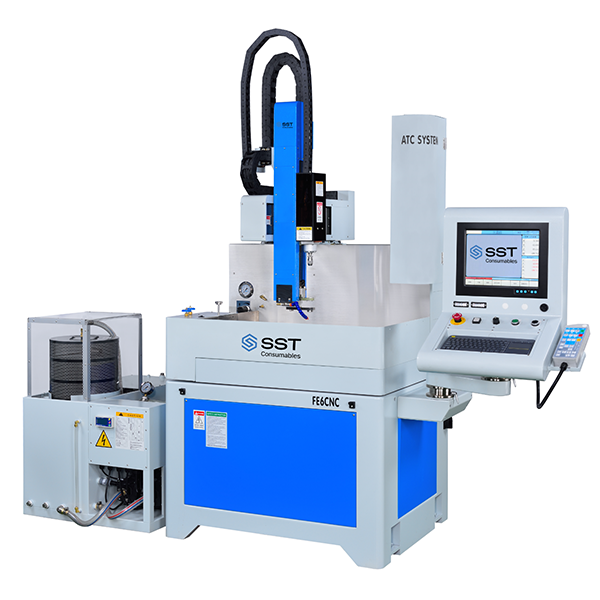

• FE6 Advanced CNC EDM Drill
• Request more information

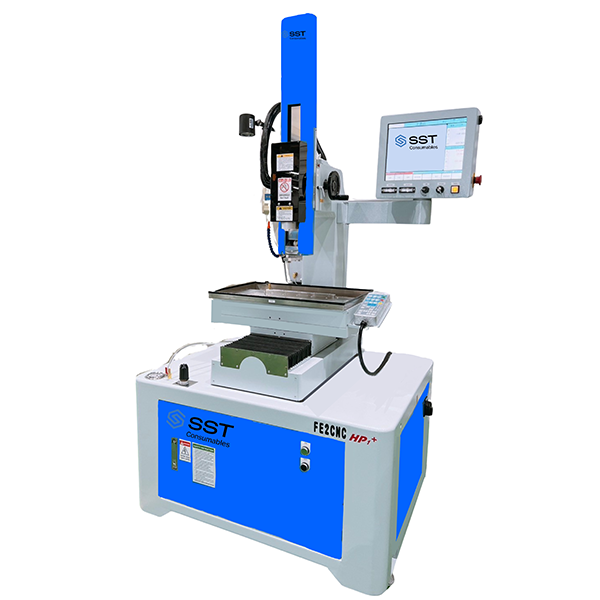

FE2 Compact CNC EDM Drill

• Machine Travels (X,Y,Z) - 11.81” x 7.87” x 11.81”
• User-friendly 15” touch screen interface with Windows operating system
• Convenient can-cycle Setup functions and multiple Work Coordinate Systems
• HP1+ High Speed discharge circuit for up to 40% faster machining speed, a more stable burn, and lower power consumption over the standard discharge circuit
• Flexible programming function allows use of Wire EDM NC program to automatically read Wire thread point locations to determine hole locations
• USB Port for import and export of data
• Electrode depth compensation function​

back to top

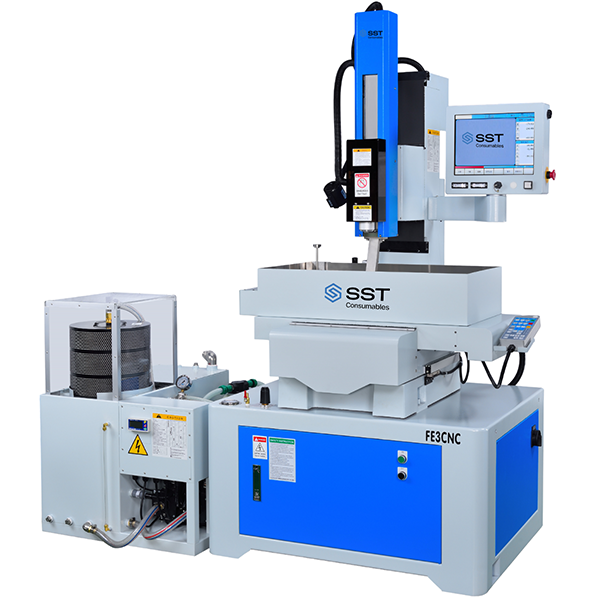

FE3 Basic CNC EDM Drill

• Machine Travels (X,Y,Z)- 13.78” x 9.84” x 13.78”
• ZNC DRO Control System displays three (x3) axis positioning (X/Y/Z)
• Manual positioning of X/Y Axis with Glass Scale feedback for accurate positioning
• Auto/Manual searching work-piece top surface (Z-Axis)
• Auto/Manual electrode compensating function
• Partial submerged operation (bottom 25mm / 1” of work piece is submerged to provide faster and more stable break-thru machine operation)
• Full function large water reservoir with common Wire EDM type filtration and di-ionization systems. Contains dedicated pumps for filtration and work tank filling
